PyIT2FLS

PyIT2FLS is a NumPy- and SciPy-based toolkit designed for working with Type 1 and Interval Type 2 Fuzzy Logic Systems.

The toolkit is distributed under the MIT License. If you use PyIT2FLS in your work, please cite our paper, PyIT2FLS: An open-source Python framework for flexible and scalable development of type 1 and interval type 2 fuzzy logic models.

BibTeX:

@article{haghrah2025pyit2fls,
    title={PyIT2FLS: An open-source Python framework for flexible and scalable development of type 1 and interval type 2 fuzzy logic models},
    author={Haghrah, Amir Arslan and Ghaemi, Sehraneh and Badamchizadeh, Mohammad Ali},
    journal={SoftwareX},
    volume={30},
    pages={102146},
    year={2025},
    publisher={Elsevier}
}

MLA:

Haghrah, Amir Arslan, Sehraneh Ghaemi, and Mohammad Ali Badamchizadeh. "PyIT2FLS: An open-source Python framework for flexible and scalable development of type 1 and interval type 2 fuzzy logic models." SoftwareX 30 (2025): 102146.

Installation

PyIT2FLS can be installed using one of the following methods:

From Source

Download and unzip the source code into a directory. Then, navigate to the PyIT2FLS folder and run the following command:

pip3 install .

Using PyPI

Alternatively, you can install or upgrade PyIT2FLS directly from PyPI using:

pip3 install --upgrade pyit2fls

Getting Started

This section introduces basic examples of how to use the PyIT2FLS library. For more advanced use cases, please refer to the examples directory in the PyIT2FLS GitHub repository.

Example 1: Defining Type 1 Fuzzy Sets and Performing AND/OR Operators on Them

In this example, we define two trapezoidal Type 1 fuzzy sets and apply fuzzy AND and OR operators on them. First, we create the trapezoidal fuzzy sets using the T1FS class and the trapezoid_mf function. Then, we plot the fuzzy sets together using the T1FS_plot function:

from pyit2fls import (T1FS, trapezoid_mf, T1FS_plot, )
from numpy import linspace

domain = linspace(-1.5, 1.5, 100)
set1 = T1FS(domain, trapezoid_mf, [-1.25, -0.75, -0.25, 0.25, 1.])
set2 = T1FS(domain, trapezoid_mf, [-0.25, 0.25, 0.75, 1.25, 1.])
T1FS_plot(set1, set2, legends=["Trapezoidal Set 1", "Trapezoidal Set 2", ])

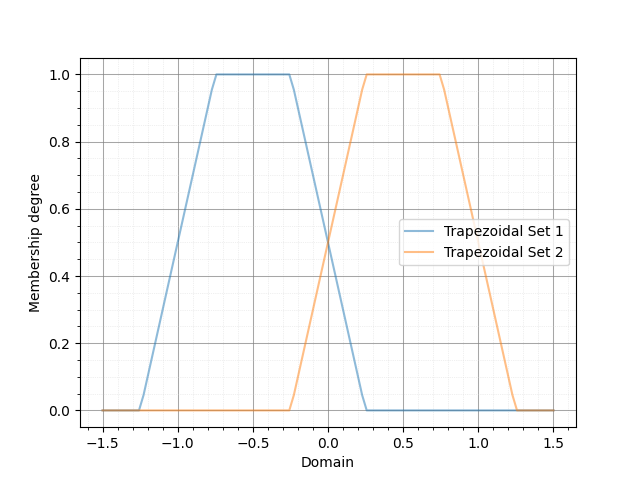

The output of this code is shown below:

Next, we compute the AND of these two sets using two different T-norms:

from pyit2fls import (min_t_norm, product_t_norm, T1FS_AND, )

set3 = T1FS_AND(domain, set1, set2, min_t_norm)
set4 = T1FS_AND(domain, set1, set2, product_t_norm)
T1FS_plot(set3, set4, legends=["Fuzzy Set 3", "Fuzzy Set 4", ])

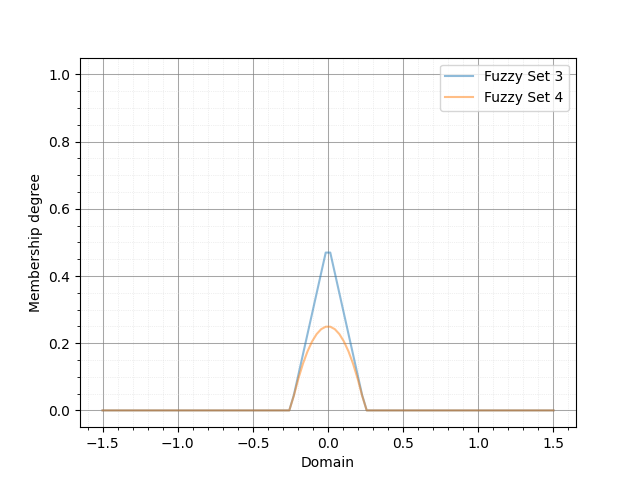

The output of this code is shown below:

Finally, we compute the OR of these two sets using two different S-norms:

from pyit2fls import (max_s_norm, probabilistic_sum_s_norm, T1FS_OR, )

set5 = T1FS_OR(domain, set1, set2, max_s_norm)
set6 = T1FS_OR(domain, set1, set2, probabilistic_sum_s_norm)
T1FS_plot(set5, set6, legends=["Fuzzy Set 5", "Fuzzy Set 6", ])

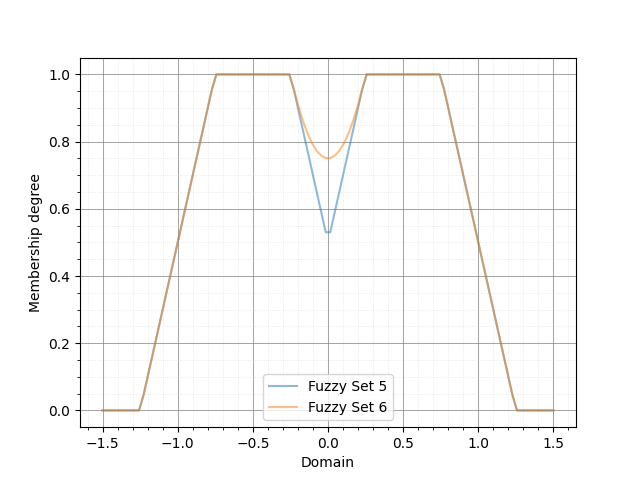

The output of this code is shown below:

Example 2: Defining Type 1 TSK Fuzzy Systems

In this example, we define a simple Type 1 TSK fuzzy system, calculate its output for specific inputs, and plot its control surface. First, we define the T1FS objects representing the inputs of the fuzzy system.

from pyit2fls import (T1TSK, T1FS, gaussian_mf, T1FS_plot, )
from numpy import (linspace, meshgrid, zeros, )
from mpl_toolkits import mplot3d
import matplotlib.pyplot as plt
from matplotlib import cm
from matplotlib.ticker import (LinearLocator, FormatStrFormatter, )

domain = linspace(-1.5, 1.5, 100)
t1fs1 = T1FS(domain, gaussian_mf, [-0.5, 0.5, 1.])
t1fs2 = T1FS(domain, gaussian_mf, [ 0.5, 0.5, 1.])
T1FS_plot(t1fs1, t1fs2, legends=["Gaussian Set 1", "Gaussian Set 2", ])

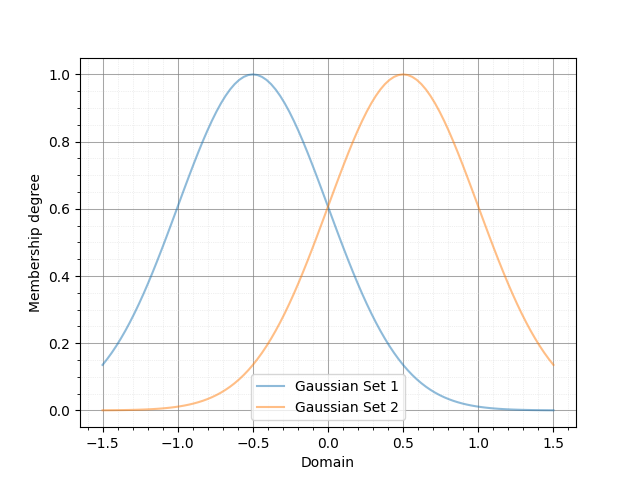

The output of this code is shown below:

As shown, there are two Gaussian fuzzy sets. The parameters of a Gaussian membership function are the mean, standard deviation, and height, respectively. Next, we define the T1TSK system along with its input and output variables.

myT1TSK = T1TSK()
myT1TSK.add_input_variable("X1")
myT1TSK.add_input_variable("X2")

myT1TSK.add_output_variable("Y")

Next, we define the outputs of the fuzzy rules. These outputs must be functions of the inputs. Since our myT1TSK system has two inputs, each output function must also depend on two inputs. Let’s assume the system includes four rules.

def Y1(X1, X2):
    return 2. * X1 + 3. * X2

def Y2(X1, X2):
    return -1.5 * X1 + 2. * X2

def Y3(X1, X2):
    return -2. * X1 - 1.2 * X2

def Y4(X1, X2):
    return 5. * X1 - 2.5 * X2

After defining the output functions, we define the rules using the following rule base:

	X2: t1fs1	X2: t1fs2
X1: t1fs1	Y: Y1	Y: Y2
X1: t1fs2	Y: Y3	Y: Y4

myT1TSK.add_rule([("X1", t1fs1), ("X2", t1fs1)],
            [("Y", Y1), ])
myT1TSK.add_rule([("X1", t1fs1), ("X2", t1fs2)],
            [("Y", Y2), ])
myT1TSK.add_rule([("X1", t1fs2), ("X2", t1fs1)],
            [("Y", Y3), ])
myT1TSK.add_rule([("X1", t1fs2), ("X2", t1fs2)],
            [("Y", Y4), ])

Now, it is time to evaluate the system’s output for various points in the universe of discourse and plot the control surface:

X1, X2 = meshgrid(domain, domain)
O = zeros(shape=X1.shape)

for i, x1 in zip(range(len(domain)), domain):
    for j, x2 in zip(range(len(domain)), domain):
        o = myT1TSK.evaluate({"X1":x1, "X2":x2}, params=(x1, x2))
        O[i, j] = o["Y"]

fig = plt.figure()
ax = fig.add_subplot(111, projection="3d")
surf = ax.plot_surface(X1, X2, O, cmap=cm.coolwarm,
                    linewidth=0, antialiased=False)
ax.zaxis.set_major_locator(LinearLocator(10))
ax.zaxis.set_major_formatter(FormatStrFormatter('%.02f'))
fig.colorbar(surf, shrink=0.5, aspect=5)
plt.show()

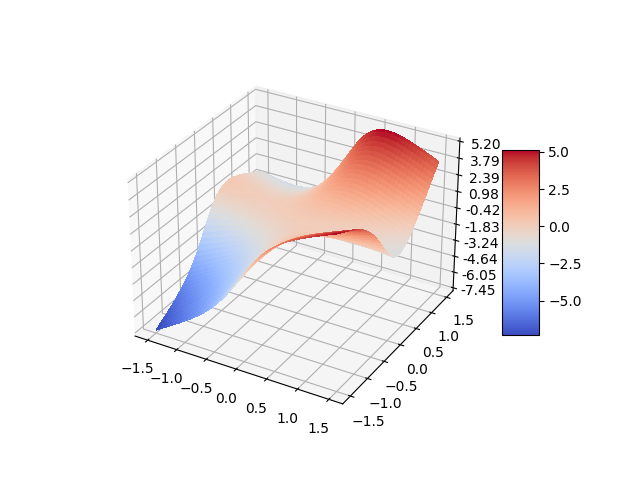

Finally, the output of this code is shown below:

Example 3: Defining Type 1 Mamdani Fuzzy Systems

In this example, we define a simple Type 1 Mamdani fuzzy system using PyIT2FLS. We calculate its output for specific inputs and plot the corresponding control surface. First, we define the T1FS objects representing the inputs of the fuzzy system.

from pyit2fls import (T1Mamdani, T1FS, gaussian_mf, T1FS_plot, )
from numpy import (linspace, meshgrid, zeros, )
from mpl_toolkits import mplot3d
import matplotlib.pyplot as plt
from matplotlib import cm
from matplotlib.ticker import (LinearLocator, FormatStrFormatter, )

inputDomain = linspace(-1.5, 1.5, 100)
t1fs1 = T1FS(inputDomain, gaussian_mf, [-0.5, 0.5, 1.])
t1fs2 = T1FS(inputDomain, gaussian_mf, [ 0.5, 0.5, 1.])
T1FS_plot(t1fs1, t1fs2, legends=["Gaussian Set 1", "Gaussian Set 2", ])

The output of this code is shown below:

As shown, there are two Gaussian fuzzy sets describing the input variables. Next, we define the T1FS objects representing the outputs of the fuzzy system.

outputDomain = linspace(-10., 10., 1000)
t1fs3 = T1FS(outputDomain, gaussian_mf, [-7.5, 2.0, 1.])
t1fs4 = T1FS(outputDomain, gaussian_mf, [-2.5, 2.0, 1.])
t1fs5 = T1FS(outputDomain, gaussian_mf, [ 2.5, 2.0, 1.])
t1fs6 = T1FS(outputDomain, gaussian_mf, [ 7.5, 2.0, 1.])
T1FS_plot(t1fs3, t1fs4, t1fs5, t1fs6,
          legends=["Gaussian Set 3", "Gaussian Set 4",
                   "Gaussian Set 5", "Gaussian Set 6", ])

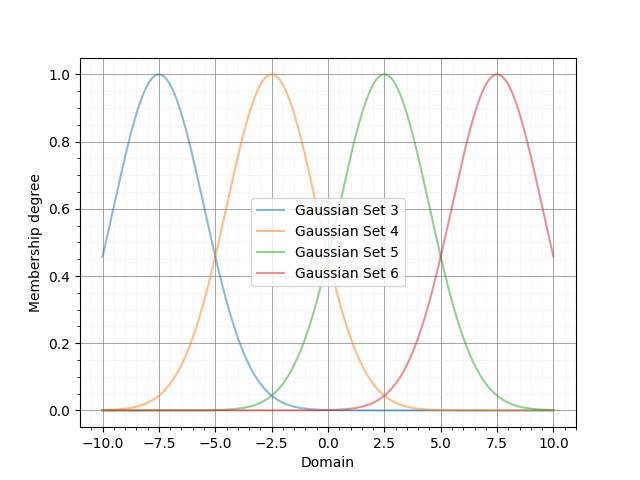

In this step, we define four sets. For all possible fuzzy rules, we can assign a distinct output. The output T1FS objects are as follows:

Now, it is time to define the Type 1 Mamdani system along with its input and output variables. The inference engine and defuzzification method can be chosen from several well-known options (refer to the documentation for more details). In this example, we use the “Product” inference engine and the center of gravity (“CoG”) defuzzification method. Additionally, we name the inputs “X1” and “X2” and the output “Y.”

myT1Mamdani = T1Mamdani(engine="Product", defuzzification="CoG")
myT1Mamdani.add_input_variable("X1")
myT1Mamdani.add_input_variable("X2")

myT1Mamdani.add_output_variable("Y")

After defining the T1Mamdani system, the next step is to define the rule base for the fuzzy system. The rules shown in the following table will be used to construct the rule base.

	X2: t1fs1	X2: t1fs2
X1: t1fs1	Y: t1fs3	Y: t1fs4
X1: t1fs2	Y: t1fs5	Y: t1fs6

The code to add rules to the rule base is as follows:

myT1Mamdani.add_rule([("X1", t1fs1), ("X2", t1fs1)], [("Y", t1fs3), ])
myT1Mamdani.add_rule([("X1", t1fs1), ("X2", t1fs2)], [("Y", t1fs4), ])
myT1Mamdani.add_rule([("X1", t1fs2), ("X2", t1fs1)], [("Y", t1fs5), ])
myT1Mamdani.add_rule([("X1", t1fs2), ("X2", t1fs2)], [("Y", t1fs6), ])

Finally, it is time to evaluate the system’s output for various points in the universe of discourse and plot the control surface:

X1, X2 = meshgrid(inputDomain, inputDomain)
O = zeros(shape=X1.shape)

for i, x1 in zip(range(len(inputDomain)), inputDomain):
    for j, x2 in zip(range(len(inputDomain)), inputDomain):
        s, c = myT1Mamdani.evaluate({"X1":x1, "X2":x2})
        O[i, j] = c["Y"]

fig = plt.figure()
ax = fig.add_subplot(111, projection="3d")
surf = ax.plot_surface(X1, X2, O, cmap=cm.coolwarm,
                    linewidth=0, antialiased=False)
ax.zaxis.set_major_locator(LinearLocator(10))
ax.zaxis.set_major_formatter(FormatStrFormatter('%.02f'))
fig.colorbar(surf, shrink=0.5, aspect=5)
plt.show()

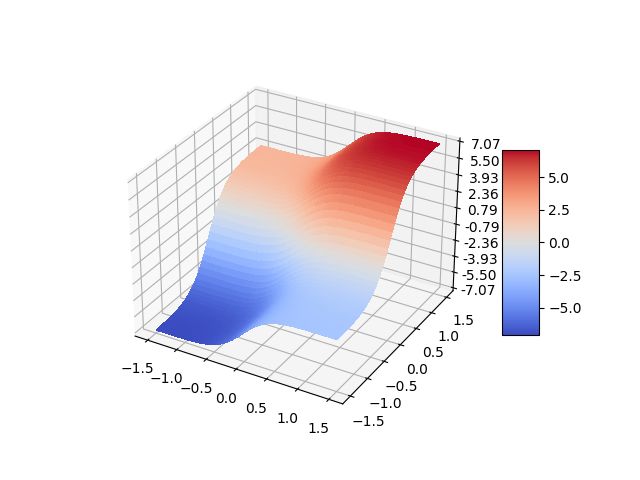

And the output of this code is shown below:

Example 4: Defining Interval Type 2 Fuzzy Sets

In this example, we define and plot ten well-known types of interval Type 2 fuzzy sets. Before using the IT2FS class, we perform some initial imports and define the universe of discourse.

The IT2FS class requires five parameters to create an interval Type 2 fuzzy set:

1. Domain: The universe of discourse.

2. Upper membership function: A function defining the upper bound.

3. Parameters of the upper membership function: The parameters required by the upper membership function.

4. Lower membership function: A function defining the lower bound.

5. Parameters of the lower membership function: The parameters required by the lower membership function.

from pyit2fls import (IT2FS, tri_mf, const_mf, rtri_mf, ltri_mf,
                    trapezoid_mf, gaussian_mf, IT2FS_Gaussian_UncertMean,
                    IT2FS_Gaussian_UncertStd, R_IT2FS_Gaussian_UncertStd,
                    L_IT2FS_Gaussian_UncertStd, IT2FS_plot, )
from numpy import linspace

domain = linspace(0, 4, 1001)

The first IT2FS we define is the constant interval Type 2 fuzzy set. This set requires only the UMF and LMF as constant membership functions. The constant membership function has a single parameter: its value.

The check_set option, when defining an IT2FS, can be used for debugging purposes. Sometimes, errors in the fuzzy set parameters can cause the LMF to have a greater membership degree than the UMF at certain points in the universe of discourse. If check_set is set to True, an exception will be raised in such cases.

Const = IT2FS(domain, const_mf, [1.0], const_mf, [0.9], check_set=True)

The next IT2FS is the triangular interval Type 2 fuzzy set. It uses triangular membership functions for both the UMF and LMF. The parameters for a triangular membership function, defined by tri_mf, include the left, center, and right points, as well as the height of the triangle.

Tri = IT2FS(domain, tri_mf, [0.7, 1.0, 1.3, 0.3], tri_mf, [0.8, 1.0, 1.2, 0.2], check_set=True)

We can also define left and right triangular interval Type 2 fuzzy sets using the rtri_mf and ltri_mf functions. The parameters required for rtri_mf are the right, center, and height. Similarly, for ltri_mf, the parameters are the left, center, and height.

RTri = IT2FS(domain, rtri_mf, [1.85, 1.25, 0.8], rtri_mf, [1.75, 1.15, 0.8], check_set=True)
LTri = IT2FS(domain, ltri_mf, [0.15, 0.75, 0.7], ltri_mf, [0.25, 0.85, 0.7], check_set=True)

The next well-known interval Type 2 fuzzy set is the trapezoidal set. We can define it using the trapezoidal membership function, trapezoid_mf. It has five parameters: left, left-center, right-center, right, and height.

Trapezoid = IT2FS(domain,
                trapezoid_mf, [0.45, 0.85, 1.15, 1.55, 0.5],
                trapezoid_mf, [0.55, 0.95, 1.05, 1.45, 0.45],
                check_set=True)

We can also define Gaussian-type sets, including general Gaussian sets, Gaussian sets with uncertain mean values, and Gaussian sets with uncertain standard deviation values. As a general form, Gaussian sets can be defined using the IT2FS class and the gaussian_mf function. The parameters for gaussian_mf are the mean value, standard deviation, and height.

Defining Gaussian sets with uncertain mean values and Gaussian sets with uncertain standard deviation values is simplified by the functions IT2FS_Gaussian_UncertMean and IT2FS_Gaussian_UncertStd. The inputs to IT2FS_Gaussian_UncertMean are the domain and a list of parameters, which include the mean center, mean spread, standard deviation, and height. For IT2FS_Gaussian_UncertStd, the inputs are similar, but the parameters list consists of the mean, standard deviation center, standard deviation spread, and height.

Gaussian = IT2FS(domain,
                 gaussian_mf, [2.25, 0.1, 0.5],
                 gaussian_mf, [2.25, 0.05, 0.4],
                 check_set=True)
Gaussian_UncertMean = IT2FS_Gaussian_UncertMean(domain, [2.5, 0.1, 0.1, 0.5])
Gaussian_UncertStd = IT2FS_Gaussian_UncertStd(domain, [2.75, 0.1, 0.05, 0.5])

There are two other widely used Gaussian-type fuzzy sets in applications, for which PyIT2FLS provides specific functions to define them easily: right-sided and left-sided Gaussian interval Type 2 fuzzy sets with uncertain standard deviation values. The functions for defining these sets are R_IT2FS_Gaussian_UncertStd and L_IT2FS_Gaussian_UncertStd.

The inputs to these functions are the domain and a parameters list. The parameters list for both functions should include the mean, standard deviation center, standard deviation spread, and height.

RGaussian_UncertStd = R_IT2FS_Gaussian_UncertStd(domain, [3.25, 0.2, 0.05, 0.6])
LGaussian_UncertStd = L_IT2FS_Gaussian_UncertStd(domain, [3.75, 0.2, 0.05, 0.6])

Finally, let’s plot all of these sets using the IT2FS_plot function:

IT2FS_plot(Const, Tri, RTri, LTri, Trapezoid, Gaussian,
           Gaussian_UncertMean, Gaussian_UncertStd,
           RGaussian_UncertStd, LGaussian_UncertStd,
           legends = ["Const Set",
                      "Triangular Set",
                      "Right Triangular Set",
                      "Left Triangular Set",
                      "Trapezoid",
                      "Gaussian",
                      "G. with Uncertain Mean",
                      "G. with Uncertain Std",
                      "Right G. with Uncertain Std",
                      "Left G. with Uncertain Std", ],
           legendloc="upper right", bbox_to_anchor=(1.55, 1),
           filename="Figure_9", ext="png")

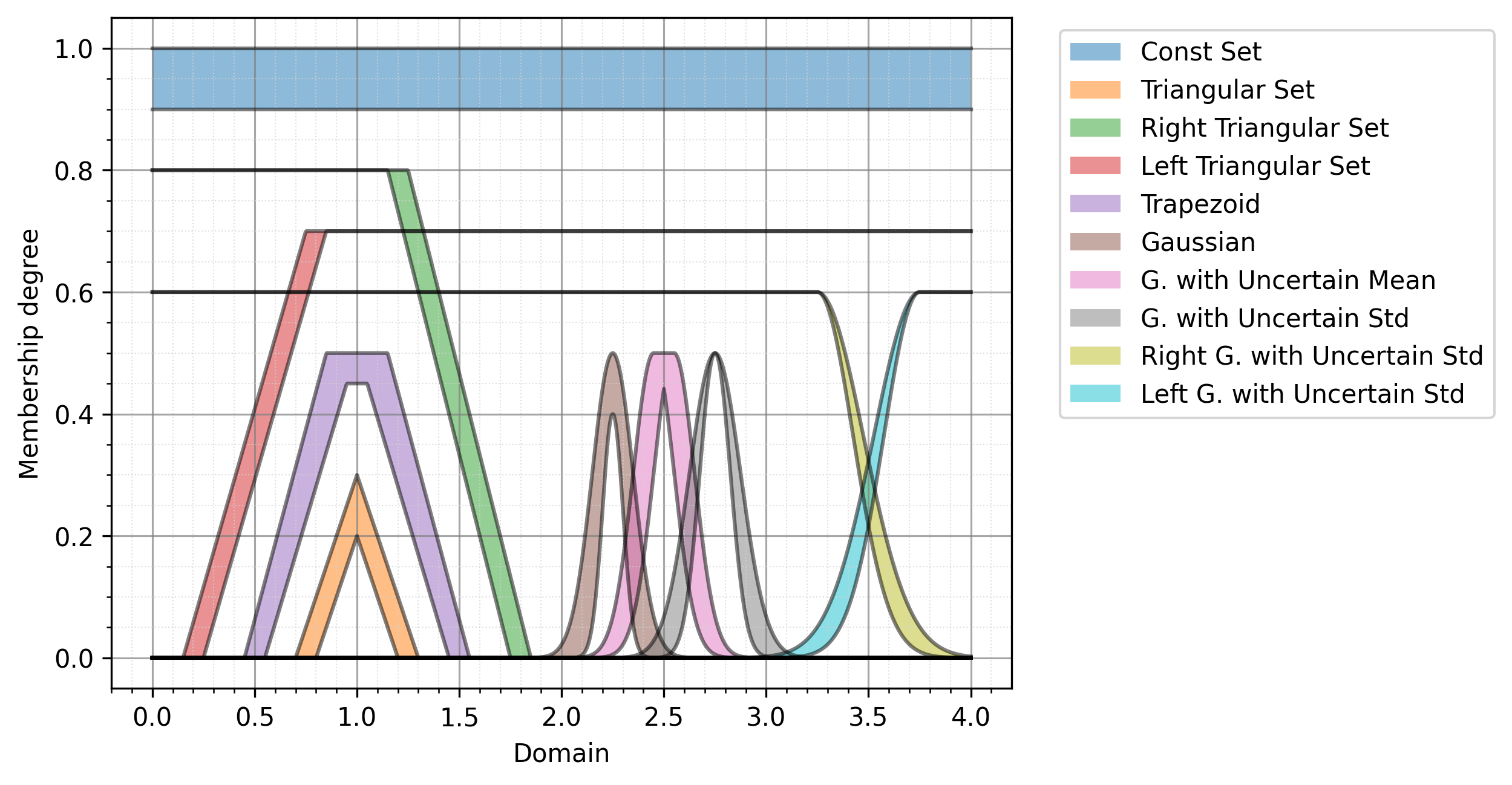

The output of this code is shown below:

Example 5: Performing MEET and JOIN Operators on IT2FSs

In this example, we define two IT2FS s and then calculate their MEET and JOIN operators.

from pyit2fls import (IT2FS, R_IT2FS_Gaussian_UncertStd,
                    L_IT2FS_Gaussian_UncertStd, IT2FS_plot,
                    hamacher_product_t_norm, probabilistic_sum_s_norm,
                    meet, join, )
from numpy import linspace

domain = linspace(1, 2, 1001)

RGaussian_UncertStd = R_IT2FS_Gaussian_UncertStd(domain, [1.25, 0.2, 0.05, 0.6])
LGaussian_UncertStd = L_IT2FS_Gaussian_UncertStd(domain, [1.75, 0.2, 0.05, 0.6])

IT2FS_plot(RGaussian_UncertStd, LGaussian_UncertStd,
           legends=["IT2FS1",
                    "IT2FS2", ])

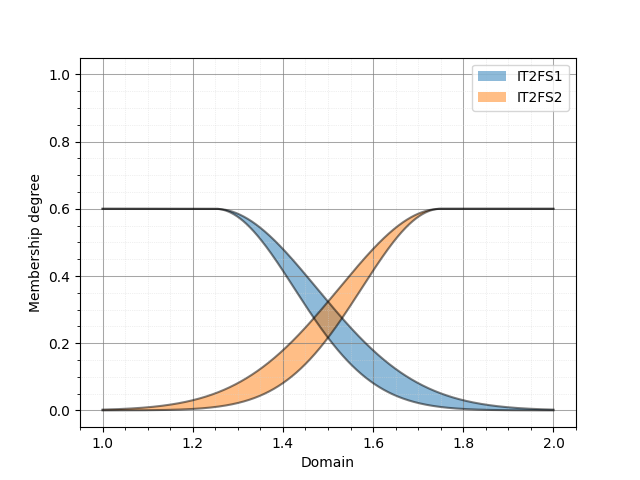

As can be seen, we defined a right and a left Gaussian interval Type 2 fuzzy set with uncertain standard deviation values. The output plot of these fuzzy sets is shown below:

Now, we will calculate the MEET and JOIN using the two functions meet and join. The first three inputs for both functions are the same: the domain, the first IT2FS, and the second IT2FS. However, the fourth input for meet should be a T-norm, while for join, it should be an S-norm.

MEET = meet(domain, RGaussian_UncertStd, LGaussian_UncertStd, hamacher_product_t_norm)
JOIN = join(domain, RGaussian_UncertStd, LGaussian_UncertStd, probabilistic_sum_s_norm)
IT2FS_plot(MEET, JOIN,
           legends=["MEET",
                    "JOIN", ])

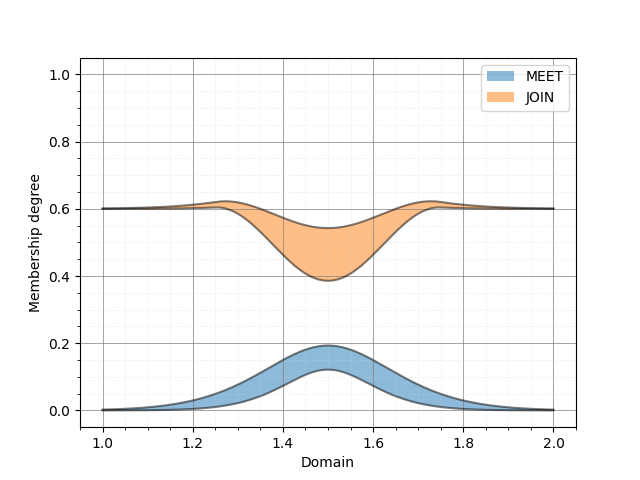

Using the Hamacher product T-norm and the probabilistic sum S-norm, the resulting output sets are shown below:

Example 6: Defining Interval Type 2 TSK Fuzzy Systems

In this example, we define a simple interval Type 2 TSK fuzzy system with two inputs and one output. Two IT2FS s will describe the input variables’ universe of discourse, and there will be four different outputs corresponding to four rules in the system’s rule-base. First, we define the fuzzy sets as follows:

from pyit2fls import (IT2TSK, IT2FS_Gaussian_UncertStd, IT2FS_plot,
                    product_t_norm, max_s_norm, )
from mpl_toolkits import mplot3d
import matplotlib.pyplot as plt
from matplotlib import cm
from matplotlib.ticker import LinearLocator, FormatStrFormatter
from numpy import linspace, meshgrid, zeros

domain = linspace(0., 1., 100)

X1, X2 = meshgrid(domain, domain)

IT2FS1 = IT2FS_Gaussian_UncertStd(domain, [0, 0.2, 0.05, 1.])
IT2FS2 = IT2FS_Gaussian_UncertStd(domain, [1., 0.2, 0.05, 1.])

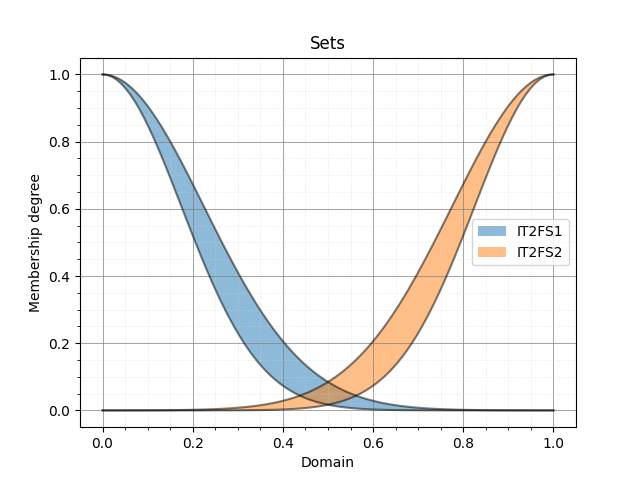

IT2FS_plot(IT2FS1, IT2FS2, title="Sets",
            legends=["IT2FS1", "IT2FS2"])

The following figure illustrates the defined fuzzy sets:

Next, we define the system using the IT2TSK class. The constructor of this class accepts two inputs: the T-norm and the S-norm to be used. We then define the names of the input and output variables using the add_input_variable and add_output_variable functions for later use. The rules of the system are added with the add_rule function, which requires two inputs: the antecedent and the consequent, both of which are lists of tuples.

Antecedent is a list of tuples where each tuple assigns a variable to an IT2FS. The first element of each tuple must be the input variable name (as a string), and the second element must be an IT2FS.

Consequent is a list of tuples where each tuple assigns a variable to an output state. The first element of each tuple must be the output variable name (as a string), and the second element must be a dictionary. This dictionary represents the output polynomial for the rule. For example, if the output polynomial is 2*X1 + 4*X2 + 5, the corresponding dictionary would be {“const”: 5., “X1”: 2., “X2”: 4.}. Note that this example is for an IT2 TSK FLS with two inputs, named X1 and X2.

The following code demonstrates how to define the IT2TSK, define input and output variables, and add rules to the rule base of the system.

myIT2FLS = IT2TSK(product_t_norm, max_s_norm)

myIT2FLS.add_input_variable("X1")
myIT2FLS.add_input_variable("X2")
myIT2FLS.add_output_variable("Y")

myIT2FLS.add_rule([("X1", IT2FS1), ("X2", IT2FS1)],
                [("Y", {"const":1., "X1":1., "X2":1.}), ])
myIT2FLS.add_rule([("X1", IT2FS1), ("X2", IT2FS2)],
                [("Y", {"const":0.5, "X1":1.5, "X2":0.5}), ])
myIT2FLS.add_rule([("X1", IT2FS2), ("X2", IT2FS1)],
                [("Y", {"const":-0.2, "X1":2., "X2":0.1}), ])
myIT2FLS.add_rule([("X1", IT2FS2), ("X2", IT2FS2)],
                [("Y", {"const":-1., "X1":4., "X2":-0.5}), ])

Now, let’s evaluate the system’s output for different points in the universe of discourse to obtain the output surface of the system and plot it.

O = zeros(shape=X1.shape)

for i, x1 in zip(range(len(domain)), domain):
    for j, x2 in zip(range(len(domain)), domain):
        o = myIT2FLS.evaluate({"X1":x1, "X2":x2})
        O[i, j] = o["Y"]


fig = plt.figure()
ax = fig.add_subplot(111, projection="3d")
surf = ax.plot_surface(X1, X2, O, cmap=cm.coolwarm,
                    linewidth=0, antialiased=False)
ax.zaxis.set_major_locator(LinearLocator(10))
ax.zaxis.set_major_formatter(FormatStrFormatter('%.02f'))
fig.colorbar(surf, shrink=0.5, aspect=5)
plt.show()

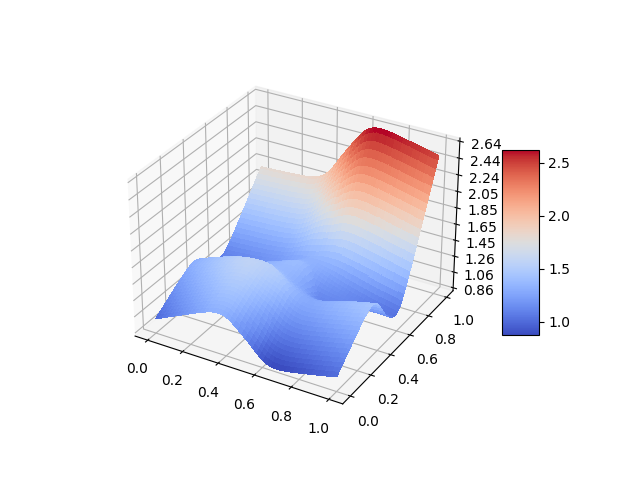

Finally, the output surface of the system is shown below:

Example 7: Defining Interval Type 2 Mamdani Fuzzy Systems

In this seventh example, we will create an interval Type 2 Mamdani fuzzy system using the IT2Mamdani class. The system has two inputs and one output. Each input variable is described by three IT2FS*s in its dedicated universe of discourse. The output of the system is described using two *IT2FS s in its own universe of discourse. First, we define the input sets as follows:

from pyit2fls import IT2Mamdani, IT2FS_Gaussian_UncertStd, IT2FS_plot, \
                    min_t_norm, max_s_norm, crisp
from numpy import linspace, meshgrid, zeros
from mpl_toolkits import mplot3d
import matplotlib.pyplot as plt
from matplotlib import cm
from matplotlib.ticker import LinearLocator, FormatStrFormatter

domain1 = linspace(1., 2., 100)
domain2 = linspace(2., 3., 100)
domain3 = linspace(3., 4., 100)

Small1  = IT2FS_Gaussian_UncertStd(domain1, [1.0, 0.2, 0.025, 1.])
Small2  = IT2FS_Gaussian_UncertStd(domain2, [2.0, 0.3, 0.025, 1.])
Medium1 = IT2FS_Gaussian_UncertStd(domain1, [1.5, 0.2, 0.025, 1.])
Medium2 = IT2FS_Gaussian_UncertStd(domain2, [2.5, 0.3, 0.025, 1.])
Large1  = IT2FS_Gaussian_UncertStd(domain1, [2.0, 0.2, 0.025, 1.])
Large2  = IT2FS_Gaussian_UncertStd(domain2, [3.0, 0.3, 0.025, 1.])

IT2FS_plot(Small1, Medium1, Large1,
        legends=["Small 1", "Medium 1", "Large 1"])
IT2FS_plot(Small2, Medium2, Large2,
        legends=["Small 2", "Medium 2", "Large 2"])

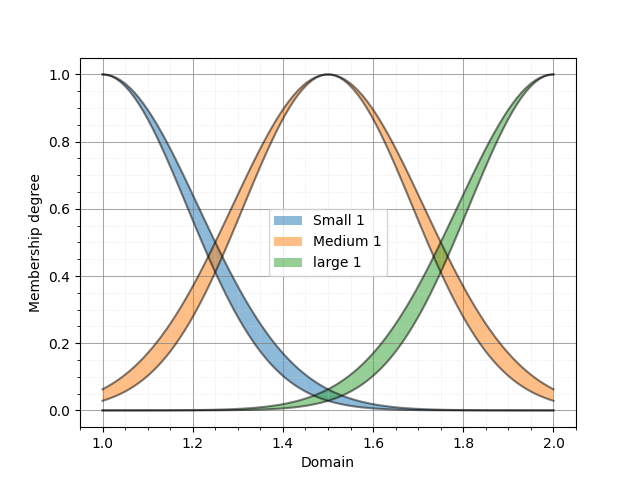

Based on this code, the IT2FS s describing the first input variable are as follows:

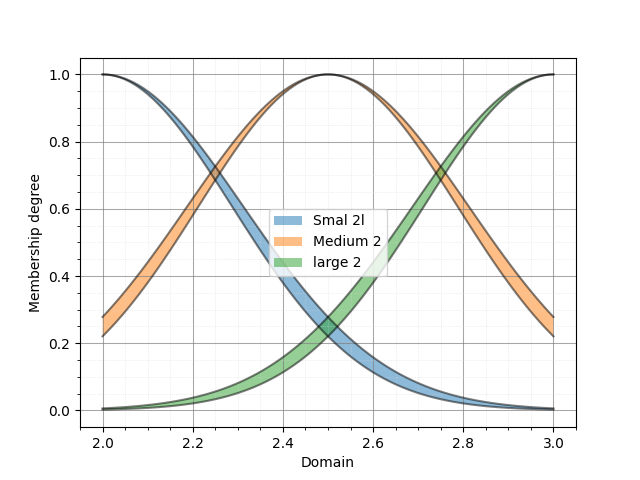

and the fuzzy sets for the second input variable are as follows:

Next, we define the output sets as follows:

Low1  = IT2FS_Gaussian_UncertStd(domain3, [3., 0.3, 0.025, 1.])
High1 = IT2FS_Gaussian_UncertStd(domain3, [4., 0.3, 0.025, 1.])

IT2FS_plot(Low1, High1,
            legends=["Low", "High"])

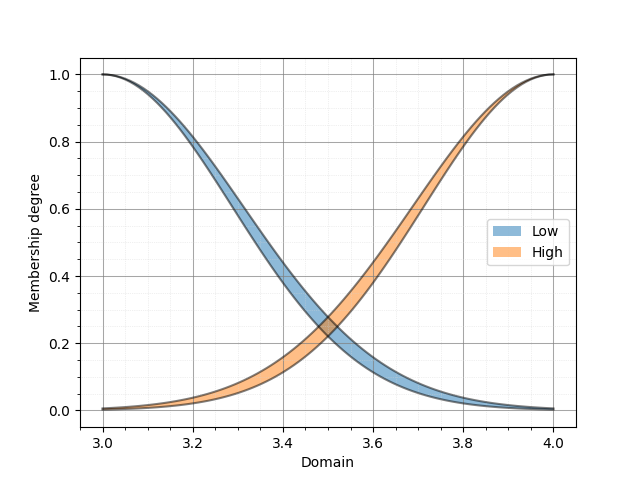

Which are represented below:

After defining the required IT2FS*s, it’s time to define the fuzzy system using the *IT2Mamdani class. The IT2Mamdani class requires a T-norm and an S-norm as constructor parameters. The names of the input and output variables should be predefined using the add_input_variable and add_output_variable functions.

Once the input and output variables are defined, the rule base of the system can be established using the add_rule function. Similar to IT2TSK, the add_rule function for IT2Mamdani accepts two inputs: antecedent and consequent. Antecedent is a list of tuples, where each tuple represents the assignment of a variable to an IT2FS. The first element of the tuple must be the input variable name as a string, and the second element must be an IT2FS. Consequent is a list of tuples, where each tuple represents the assignment of a variable to an IT2FS. The first element of the tuple must be the output variable name as a string, and the second element must be an IT2FS.

myIT2FLS = IT2Mamdani(min_t_norm, max_s_norm)

myIT2FLS.add_input_variable("X1")
myIT2FLS.add_input_variable("X2")

myIT2FLS.add_output_variable("Y")

myIT2FLS.add_rule([("X1", Small1),  ("X2", Small2)],  [("Y", Low1),  ])
myIT2FLS.add_rule([("X1", Small1),  ("X2", Medium2)], [("Y", Low1),  ])
myIT2FLS.add_rule([("X1", Small1),  ("X2", Large2)],  [("Y", Low1),  ])
myIT2FLS.add_rule([("X1", Medium1), ("X2", Small2)],  [("Y", Low1),  ])
myIT2FLS.add_rule([("X1", Medium1), ("X2", Medium2)], [("Y", Low1),  ])
myIT2FLS.add_rule([("X1", Medium1), ("X2", Large2)],  [("Y", High1), ])
myIT2FLS.add_rule([("X1", Large1),  ("X2", Small2)],  [("Y", High1), ])
myIT2FLS.add_rule([("X1", Large1),  ("X2", Medium2)], [("Y", High1), ])
myIT2FLS.add_rule([("X1", Large1),  ("X2", Large2)],  [("Y", High1), ])

After defining our fuzzy system, it’s time to evaluate it over the universe of discourse and plot the output surface.

X1, X2 = meshgrid(domain1, domain2)
Z1 = zeros(shape=(len(domain1), len(domain2)))
for i, x1 in zip(range(len(domain1)), domain1):
    for j, x2 in zip(range(len(domain2)), domain2):
        it2out, tr = myIT2FLS.evaluate({"X1":x1, "X2":x2})
        Z1[i, j] = crisp(tr["Y"])

fig = plt.figure()
ax = fig.add_subplot(111, projection="3d")
surf = ax.plot_surface(X1, X2, Z1, cmap=cm.coolwarm,
                    linewidth=0, antialiased=False)
ax.zaxis.set_major_locator(LinearLocator(10))
ax.zaxis.set_major_formatter(FormatStrFormatter('%.02f'))
fig.colorbar(surf, shrink=0.5, aspect=5)
plt.show()

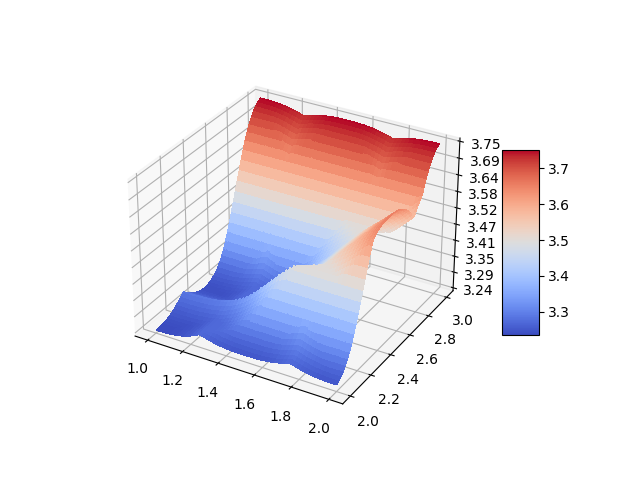

The output surface of the system is as follows:

Example 8: Learning From Input/Output Data

In this example, we will train fuzzy models using input/output data. PyIT2FLS provides four types of models for this purpose: IT2TSK_ML, IT2Mamdani_ML, T1TSK_ML, and T1Mamdani_ML. First, we will generate data based on a mathematical model and then add noise to it. Next, we will fit the data using different models and compare their performance. Fuzzy systems are expected to perform well when handling noisy and uncertain data; therefore, we anticipate that the output will closely resemble the original mathematical model.

from pyit2fls import (IT2TSK_ML, IT2FS_Gaussian_UncertMean,
                     IT2FS_plot, )
from numpy import (linspace, array, abs, pi, sin,
                   cos, meshgrid, zeros_like, sum,
                   column_stack, )
from numpy.random import (rand, )
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

x1 = linspace(-pi, pi, 10)
x2 = linspace(-pi, pi, 10)

X1, X2 = meshgrid(x1, x2)

X = column_stack((X1.ravel(), X2.ravel()))
y1 = sin(X1) + cos(X2)
noise = 1.0 * (rand(len(X1), len(X2)) - 0.5)
y2 = y1 + noise

Now, we will create an IT2TSK_ML object with two inputs, four rules, and parameters bounded between −π and π. The model will use interval type-2 Gaussian sets with uncertain mean values, and it will be trained using a genetic algorithm configured with a population size of 100, 100 iterations, 500 mutations, 50 crossovers, and an elite proportion of 5%.

N = 2
M = 4
myIT2TSK = IT2TSK_ML(N, M, IT2FS_Gaussian_UncertMean, (-pi, pi),
                     algorithm="GA",
                     algorithm_params=[100, 100, 500, 50, 0.05])

Let’s provide the generated noisy data to the model for fitting.

myIT2TSK.fit(X, y2.ravel())

In this step, we have an interval type-2 TSK system with parameters optimized to minimize the error for the input/output dataset. Using the fitted model, we then evaluate the output for the given input data:

y3 = myIT2TSK.score(X).reshape(X1.shape)

Next, let’s plot the original data, the noisy data, and the fitted data:

fig = plt.figure(figsize=(6, 4))
ax = fig.add_subplot(111, projection='3d')
original = ax.plot_surface(X1, X2, y1, cmap="Blues",
                           vmin=y1.min(), vmax=y1.max())
fig.colorbar(original, ax=ax, shrink=0.5, aspect=10,
            label="Original Surface")
ax.view_init(elev=10, azim=-60)
ax.set_xlabel(r"$x_{1}$")
ax.set_ylabel(r"$x_{2}$")

plt.tight_layout()
plt.savefig("example8_1", format="pdf",
            dpi=600, bbox_inches="tight")
plt.show()


fig = plt.figure(figsize=(6, 4))
ax = fig.add_subplot(111, projection='3d')
fitted = ax.plot_surface(X1, X2, y2, cmap="Blues",
                         vmin=y2.min(), vmax=y2.max())
fig.colorbar(fitted, ax=ax, shrink=0.5, aspect=10,
             label="Noisy Surface")
ax.view_init(elev=10, azim=-60)
ax.set_xlabel(r"$x_{1}$")
ax.set_ylabel(r"$x_{2}$")

plt.tight_layout()
plt.savefig("example8_2", format="pdf",
            dpi=600, bbox_inches="tight")
plt.show()


fig = plt.figure(figsize=(6, 4))
ax = fig.add_subplot(111, projection='3d')
error_surface = ax.plot_surface(X1, X2, abs(y1 - y3),
                                cmap="Greens", alpha=0.8)
fig.colorbar(error_surface, ax=ax, shrink=0.5, aspect=10,
            label="Error Surface")
ax.plot_surface(X1, X2, y3, cmap="Blues", alpha=0.7)
ax.view_init(elev=10, azim=-60)
ax.set_xlabel(r"$x_{1}$")
ax.set_ylabel(r"$x_{2}$")

plt.tight_layout()
plt.savefig("example8_3", format="pdf",
            dpi=600, bbox_inches="tight")
plt.show()

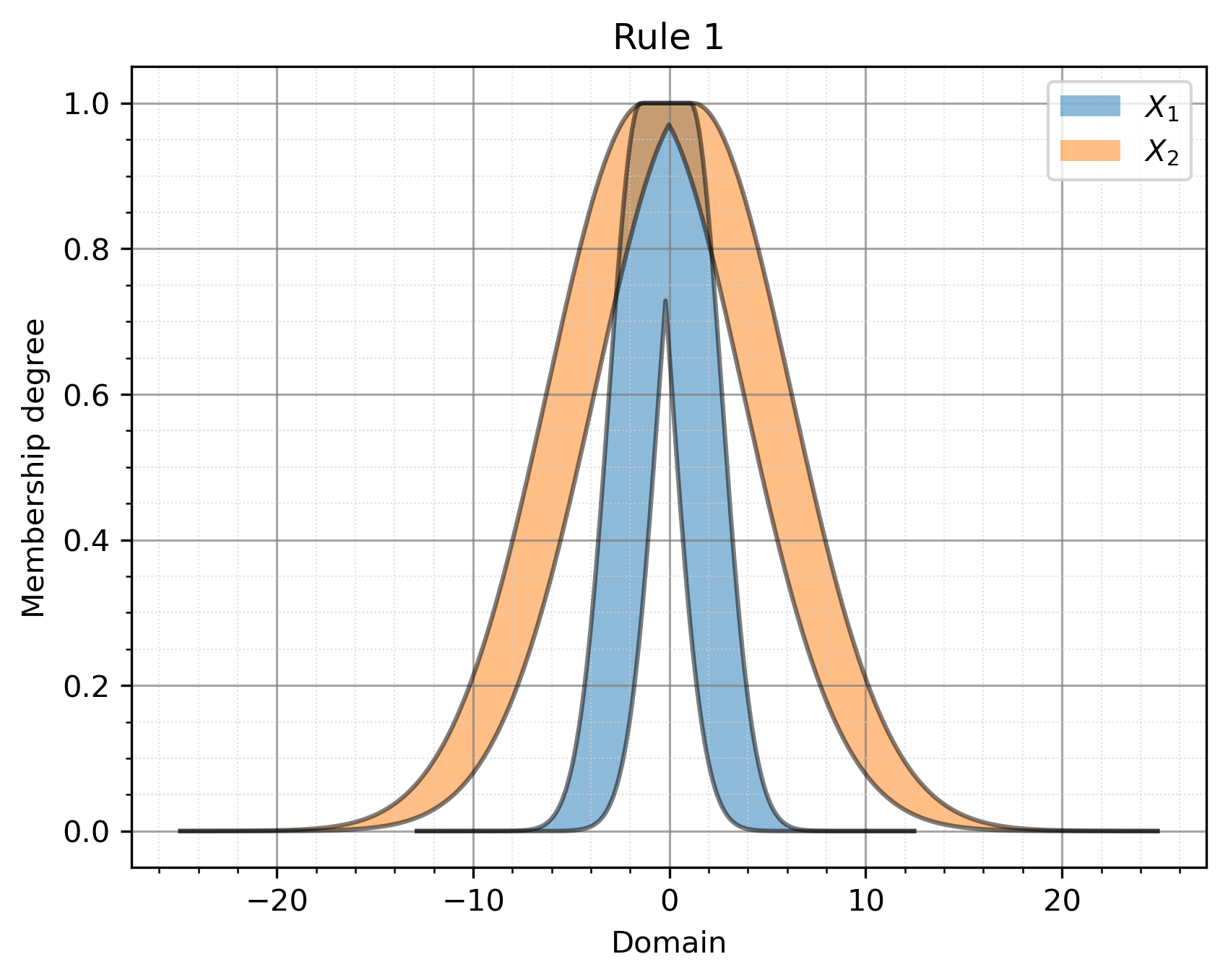

We will represent the rule base and save it as following.

systemData = open("data.txt", "w")

for i, rule in zip(range(len(myIT2TSK.model.it2tsk.rules)),
                myIT2TSK.model.it2tsk.rules):
    IT2FS_plot(rule[0][0][1], rule[0][1][1], title=f"Rule {i+1}",
                legends=[r"$X_{1}$", r"$X_{2}$", ],
                filename=f"example8_{i+4}", ext="pdf")
    ruleText = f"Rule {i+1}: IF X1 IS [{rule[0][0][1]}] AND X2 IS [{rule[0][1][1]}] THEN Y IS [{rule[1][0][1]['const']}]"
    print(ruleText)
    systemData.write(ruleText + "\n")

systemData.close()

print(f"Fitting error with respect to original surface: {sum((y1 - y3) ** 2) ** 0.5}")
print(f"Fitting error with respect to noisy surface: {sum((y2 - y3) ** 2) ** 0.5}")

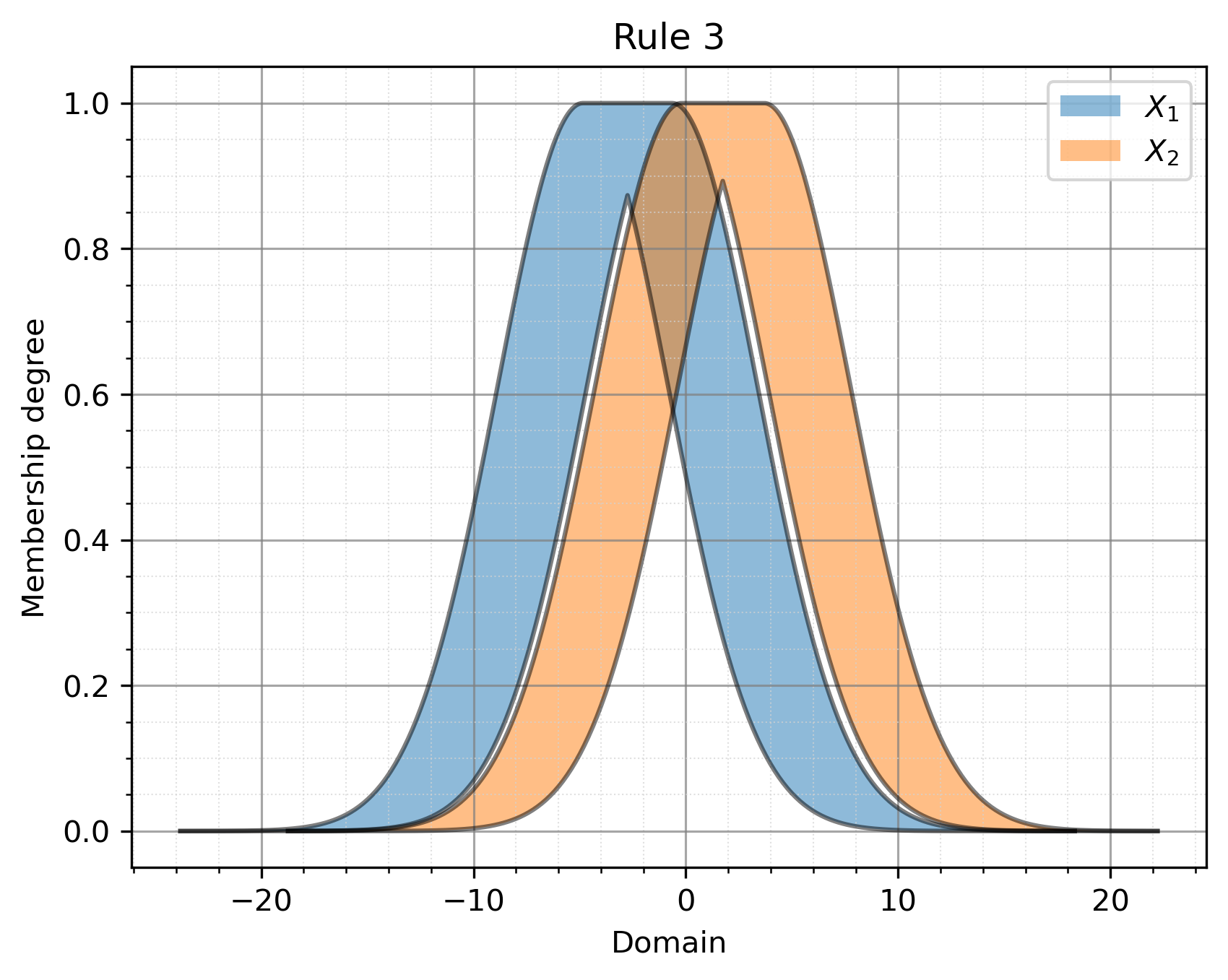

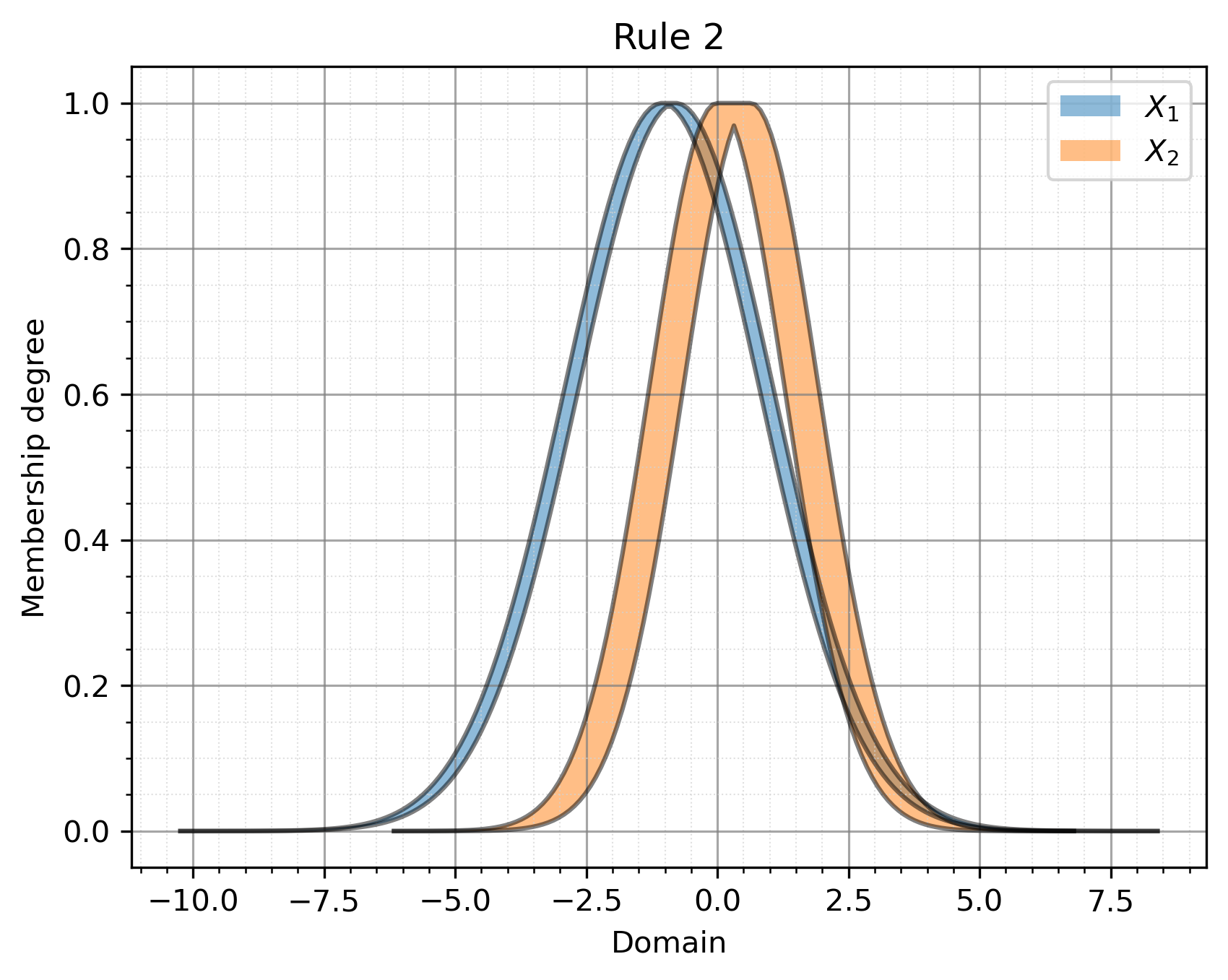

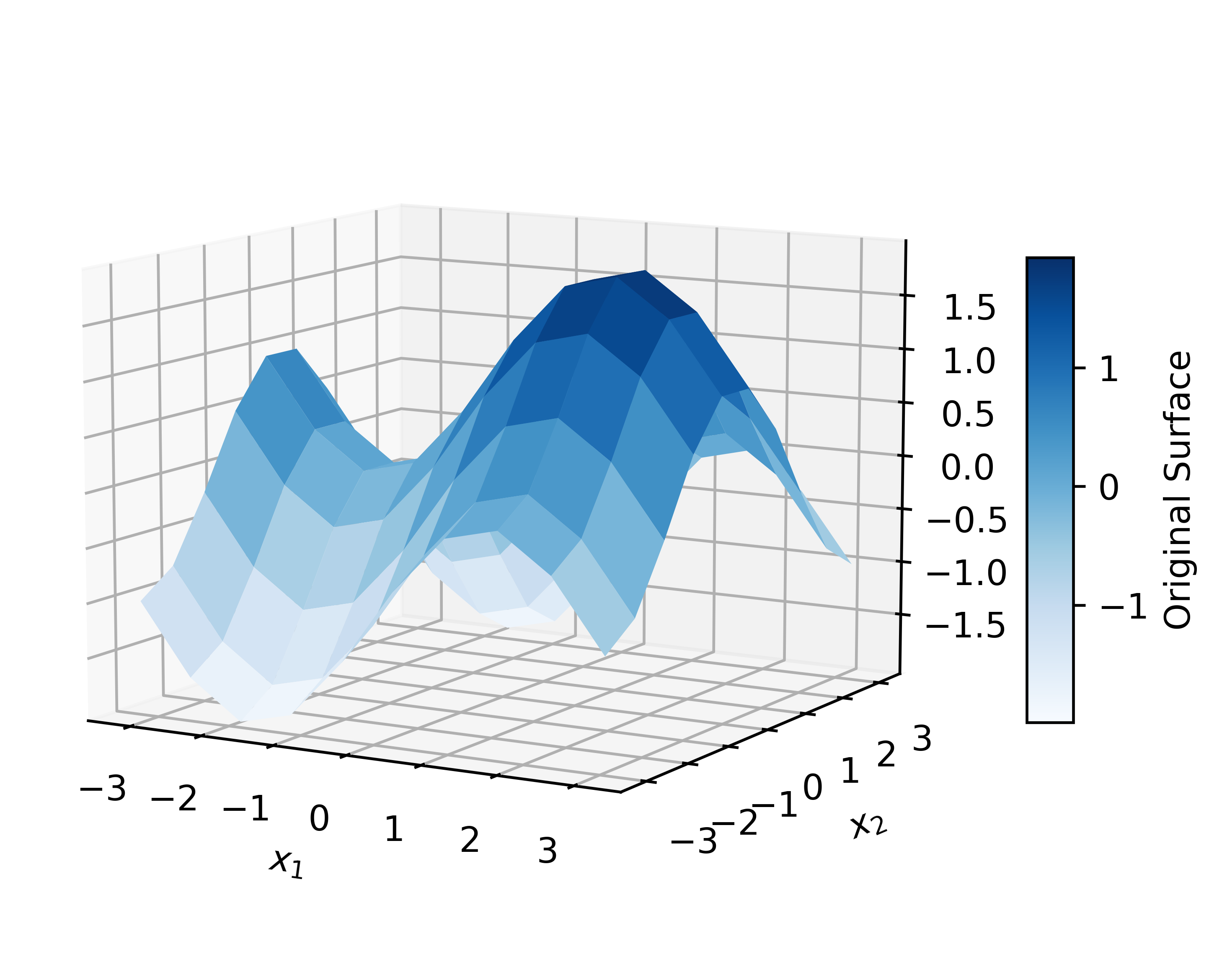

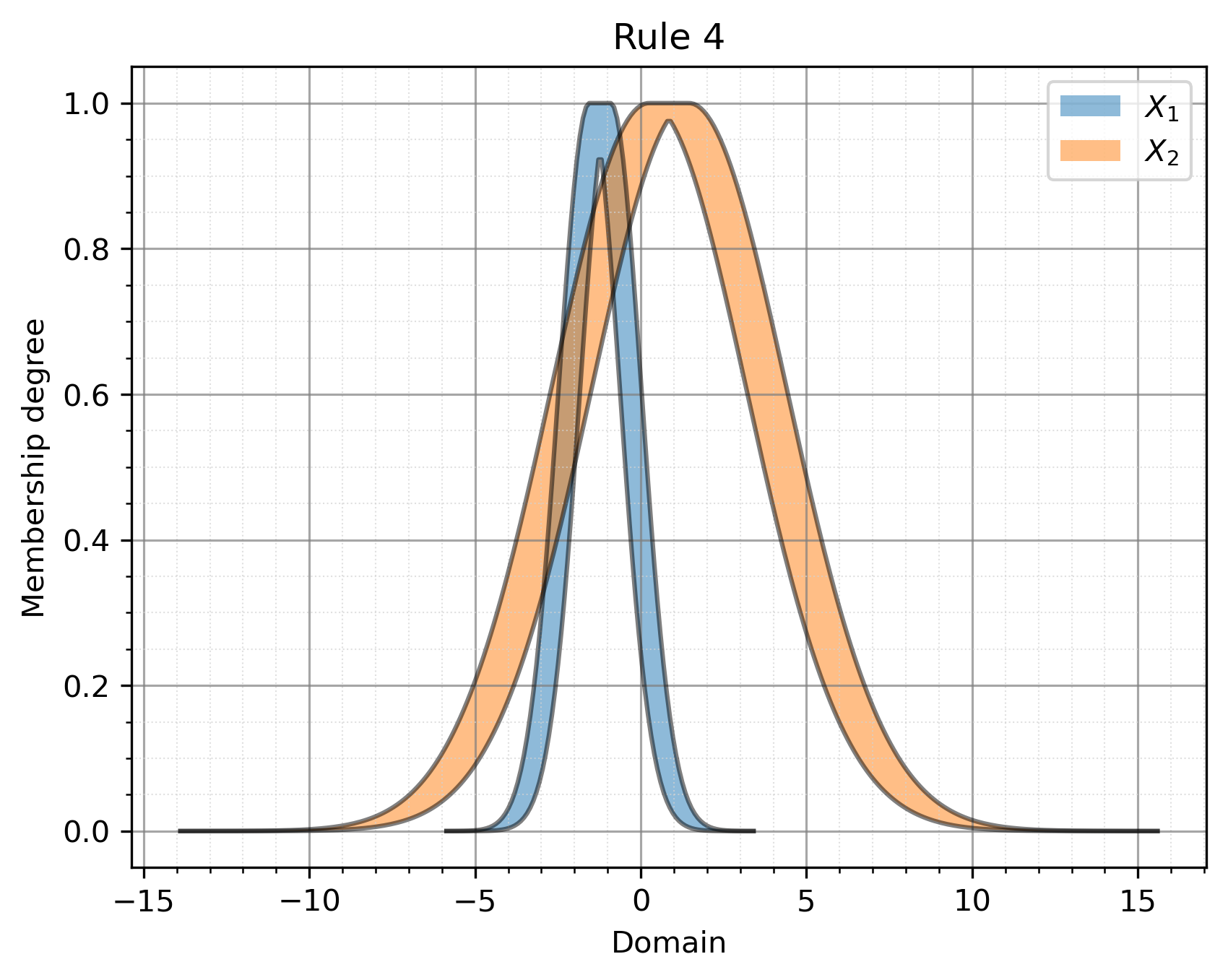

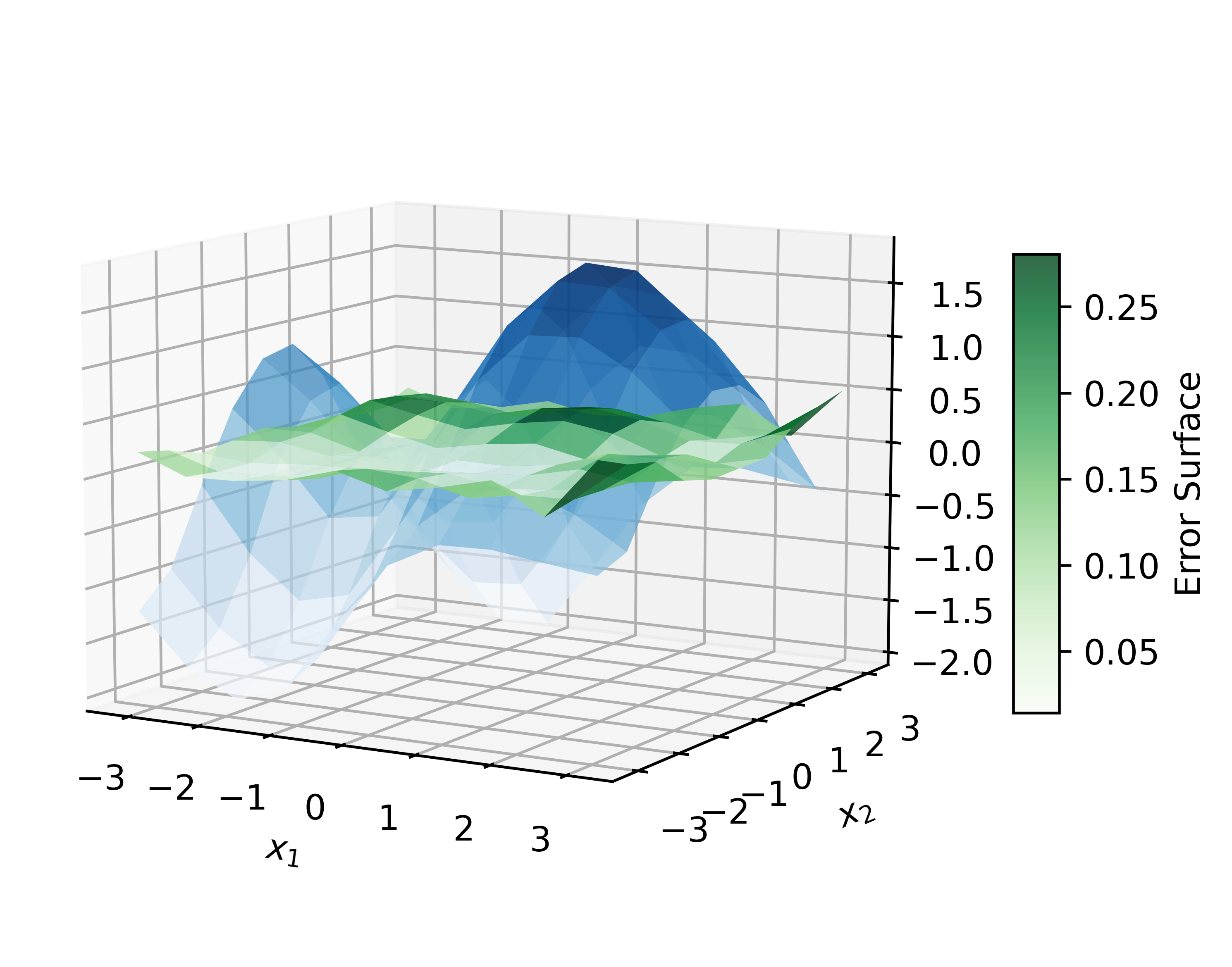

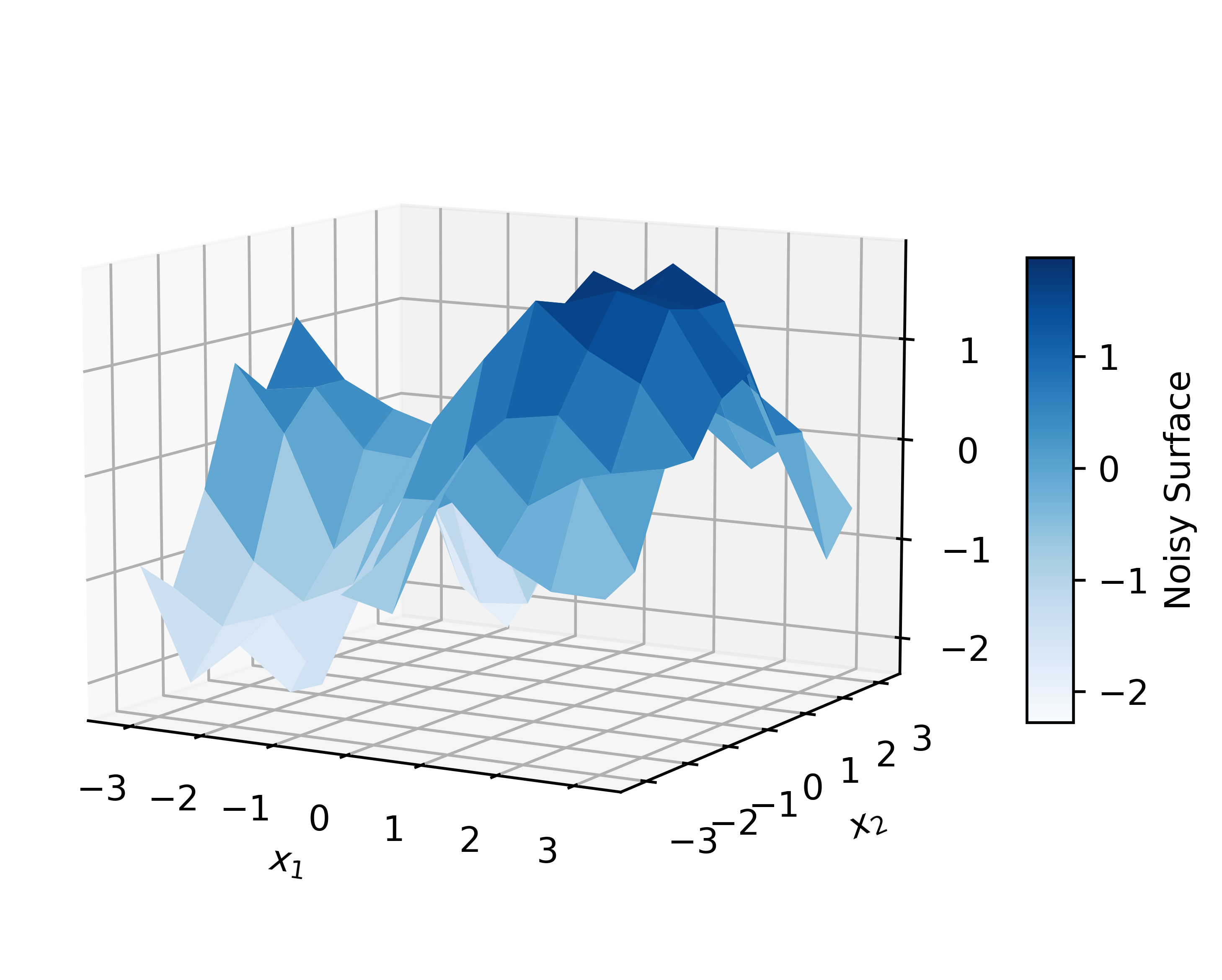

The output plots achieved by this example would be as:

Finally, we obtain the outputs of the fuzzy rules as follows. Note that we used a random number generation-based solver to find the optimal parameters; therefore, each run may yield different results.

Rule 1: 0.5936306702649519
Rule 2: 6.088185997131968
Rule 3: -1.434079311036905
Rule 4: -5.609642128761873

The next model to be used is IT2Mamdani_ML. It shares the same constructor arguments as IT2TSK_ML — the number of inputs, the number of rules, the interval type-2 fuzzy set class, the parameter bounds, and the optimization algorithm — but its consequents are interval type-2 fuzzy sets rather than TSK-style linear polynomials, and it is trained and evaluated the same way:

from pyit2fls import IT2Mamdani_ML

myIT2Mamdani = IT2Mamdani_ML(N, M, IT2FS_Gaussian_UncertMean, (-pi, pi),
                             algorithm="GA",
                             algorithm_params=[100, 100, 500, 50, 0.05])
myIT2Mamdani.fit(X, y2.ravel())
y4 = myIT2Mamdani.score(X).reshape(X1.shape)

Plotting the fitted surface follows the same three-surface approach shown for IT2TSK_ML above, simply replacing y3 with y4. The rule base can be inspected the same way too, through model.it2mamdani.rules instead of model.it2tsk.rules; since IT2Mamdani_ML’s consequents are IT2FS objects rather than TSK coefficient dictionaries, each rule is printed as an “IF … THEN Y IS [<IT2FS>]” statement:

for i, rule in enumerate(myIT2Mamdani.model.it2mamdani.rules):
    ruleText = f"Rule {i+1}: IF X1 IS [{rule[0][0][1]}] AND X2 IS [{rule[0][1][1]}] THEN Y IS [{rule[1][0][1]}]"
    print(ruleText)

print(f"Fitting error with respect to original surface: {sum((y1 - y4) ** 2) ** 0.5}")
print(f"Fitting error with respect to noisy surface: {sum((y2 - y4) ** 2) ** 0.5}")

Next, the T1TSK_ML and T1Mamdani_ML models are trained on the same data. Unlike the interval type-2 models above, these produce Type 1 fuzzy systems: their constructor takes only the number of inputs, the number of rules, and the parameter bounds (there is no fuzzy set class argument, since both always use Gaussian antecedents), and the generated linguistic system is obtained through a dedicated get_T1TSK/get_T1Mamdani method rather than through model.it2tsk/model.it2mamdani:

from pyit2fls import T1TSK_ML, T1Mamdani_ML

myT1TSK = T1TSK_ML(N, M, (-pi, pi), algorithm="GA",
                   algorithm_params=[100, 100, 500, 50, 0.05])
myT1TSK.fit(X, y2.ravel())
y5 = myT1TSK.score(X).reshape(X1.shape)

myT1Mamdani = T1Mamdani_ML(N, M, (-pi, pi), algorithm="GA",
                           algorithm_params=[100, 100, 500, 50, 0.05])
myT1Mamdani.fit(X, y2.ravel())
y6 = myT1Mamdani.score(X).reshape(X1.shape)

Again, plotting y5 and y6 follows the same three-surface pattern shown above. Calling get_T1TSK or get_T1Mamdani returns a ready-to-use T1TSK/T1Mamdani system built from the learned parameters, which can be inspected and evaluated exactly like the systems built by hand in Example 2 and Example 3:

generatedT1TSK = myT1TSK.get_T1TSK()
for i, rule in enumerate(generatedT1TSK.rules):
    antecedent, consequent = rule
    ruleText = f"Rule {i+1}: IF X1 IS [{antecedent[0][1]}] AND X2 IS [{antecedent[1][1]}] THEN Y IS [{consequent[0][1]}]"
    print(ruleText)
print(generatedT1TSK.evaluate({"X1": 0.5, "X2": -0.3}, params=(0.5, -0.3)))

generatedT1Mamdani = myT1Mamdani.get_T1Mamdani()
for i, rule in enumerate(generatedT1Mamdani.rules):
    antecedent, consequent = rule
    ruleText = f"Rule {i+1}: IF X1 IS [{antecedent[0][1]}] AND X2 IS [{antecedent[1][1]}] THEN Y IS [{consequent[0][1]}]"
    print(ruleText)
print(generatedT1Mamdani.evaluate({"X1": 0.5, "X2": -0.3}))

Example 9: Reading and Writing FML/FCL Files, and the Designer GUI

Besides building a fuzzy system directly in Python, as in the previous examples, PyIT2FLS can also read and write fuzzy systems in two standardized text formats: the IEEE 1855 Fuzzy Markup Language (FML), through the FML class, and the IEC 61131-7 Fuzzy Control Language (FCL), through the FCL class. Both classes share the same parser/generator shape: parse_fml/parse_fcl reads a document into a (name, variables, rules) triple, and generate builds a runnable T1Mamdani system out of it (via the shared generate_system function); export_fml/export_fcl serializes a system back out to text.

In this example, we define a small restaurant-tipping controller directly as FCL text and evaluate it, without ever constructing T1FS or T1Mamdani objects by hand:

from pyit2fls.FCL import FCL

FCL_TEXT = """
FUNCTION_BLOCK Tipper

VAR_INPUT
    service : REAL;
    food : REAL;
END_VAR

VAR_OUTPUT
    tip : REAL;
END_VAR

FUZZIFY service
    TERM poor := (0,1) (5,0);
    TERM good := (0,0) (5,1) (10,0);
    TERM excellent := (5,0) (10,1);
END_FUZZIFY

FUZZIFY food
    TERM bad := (0,1) (5,0);
    TERM tasty := (0,0) (10,1);
END_FUZZIFY

DEFUZZIFY tip
    TERM low := (0,1) (13,0);
    TERM average := (0,0) (13,1) (25,0);
    TERM high := (13,0) (25,1);
    METHOD : COG;
    DEFAULT := 0;
END_DEFUZZIFY

RULEBLOCK rules
    AND : MIN;
    ACT : MIN;
    RULE 1 : IF service IS poor THEN tip IS low;
    RULE 2 : IF food IS bad THEN tip IS low;
    RULE 3 : IF service IS good THEN tip IS average;
    RULE 4 : IF service IS excellent THEN tip IS high;
    RULE 5 : IF food IS tasty THEN tip IS high;
END_RULEBLOCK

END_FUNCTION_BLOCK
"""

myFCL = FCL()
name, variables, rules = myFCL.parse_fcl(FCL_TEXT)
system = myFCL.generate(variables, rules)
print(system.evaluate({"service": 8, "food": 9}))

Note that rules 1–2 and 4–5 express what would naturally be written as two OR-connected rules (“IF service IS poor OR food IS bad THEN tip IS low”). PyIT2FLS’s underlying T1Mamdani/T1TSK engines only combine a rule’s antecedent clauses with AND, so an OR relationship between two clauses must be modeled as two separate rules sharing the same consequent, as done here — their contributions are then combined during the usual rule accumulation.

The same system could equally have been written as FML XML and loaded with the FML class instead; see markdown docs/FML.md and markdown docs/FCL.md for a complete description of what each format supports.

Finally, PyIT2FLS ships a graphical designer for building, simulating, and saving/loading systems like this one interactively, without writing any FML/FCL by hand. It depends on the optional PyQt5 extra:

pip3 install --upgrade "pyit2fls[gui]"

and can then be launched with the console script it installs, or as a module:

pyit2fls-designer
# or
python3 -m pyit2fls.designerui

See markdown docs/DesignerGUI.md for a walkthrough of the designer’s three tabs (variables and membership functions, rule base, and simulation), and Languages (FML and FCL) and Designer GUI for the full API reference of the FML, FCL, and designer classes.
